Forms are used to collect, validate, and submit user input. They usually contains form elements including Checkbox, Dialog, Select Menu, Input Field, Radio Button and Switch.

Form Layout

Forms should be designed in columns as this improves scanability. When there are not a lot of fields, a form should be one column. Information can be presented in multiple columns if they are grouped together.

One-column layout is preferred, but use two to four column layouts when:

Two Column Layout. The Observations From field is associated with the Observations Start Time field
Two Column Layout. The Observations From field is associated with the Observations Start Time field

Form Spacing

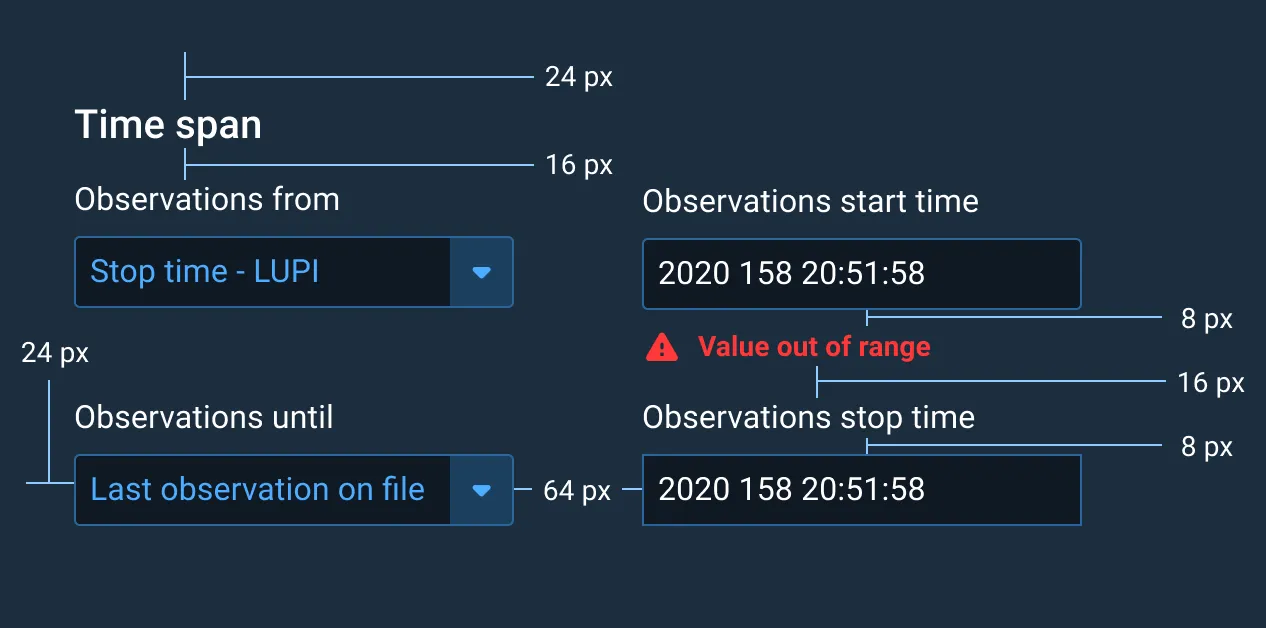

Values for horizontal and vertical spacing.
Values for horizontal and vertical spacing.

Labels

Labels should use clear but concise language and provide enough information for the user to accurately complete the required information.

In general, labels should follow the vertical format of the Form. Place labels above their respective fields and align with the left edge of the Form element. If the Form has a limited amount of height available to it, labels can also be placed to the left of the field as long as the placement of labels is consistent within the Form. Either way, group a label with its field so that there is a clear distinction between fields.

We recommend using concise, single line labels whenever possible, but multi-line text labels can be achieved by changing the setting to ‘auto-height’.

Multi-line labels should align with their respective form elements in the same manner as one-line labels above their respective form and to the left if needed.

In pairs of form elements with corresponding labels that have different label lengths, they should follow the same convention (both positioned to the top left side of the form field). When positioning multi-line labels above each other, vertical alignment should always be measured from longest multi-line text with 16 px of padding beneath to the top of the next element.

When positioning labels and form elements horizontally to the left and right of each other, align to the top of the left form field element, and with 32 px spacing between that and the next label/element pair.

Rules of Thumb

Help Text

Help Text is an optional component addition used to provide contextual or instructional information for a form element. Help Text content should be as concise as possible while still providing valuable information to the user.

Use Help Text instead of placeholder text when the user needs to refer to the instructional text after the field is filled in. Placeholder text should be used sparingly because the text disappears once the field is in focus, but can be used for generic information that is not required to complete the task. For example, including “Search…” in a Search field is acceptable since there are other cues about the functionality of the field outside of the placeholder text.

Rules of Thumb

Appearance and Behavior

Help Text uses a smaller font size with the secondary text color so that it doesn’t take away too much focus from the main form element that the user should focus on. As usual, sentence case capitalization is used for Help Text for readability. Help Text is placed 8 px below the form element and is left-aligned with the beginning of that form element to make sure that it is clear which element the help content is related to. For Forms using labels above fields, this means that the Help Text would align with the start of the field’s label as well. For Forms with labels to the left of the field, the Help Text would only start with the form element, not the label, to make it easier to scan down the list of element labels without distraction. Two exceptions to this rule are Radio Button and Checkbox list items. In these cases, Help Text for a particular item in the list will be left-aligned to the start of the item text and not the Radio Button or Checkbox icon. This improves readability of the list. If the Help Text is relevant to a group of controls, like a group of Checkboxes that requires one selection, then the Help Text can go below the full grouping, left-aligned with the element’s label.

Like labels, in general, Help Text should only have one line of text below a field. If the text would need to wrap to a second line, use an icon that triggers a Pop Over on-click that contains the help content instead. This reduces scrolling and user distraction from the main content, the form elements themselves.

Examples

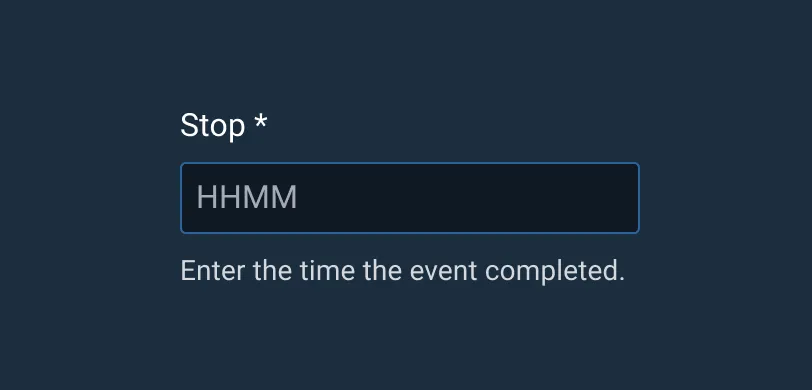

Do: Use Help Text for important, concise instructions.
Do: Use Help Text for important, concise instructions.

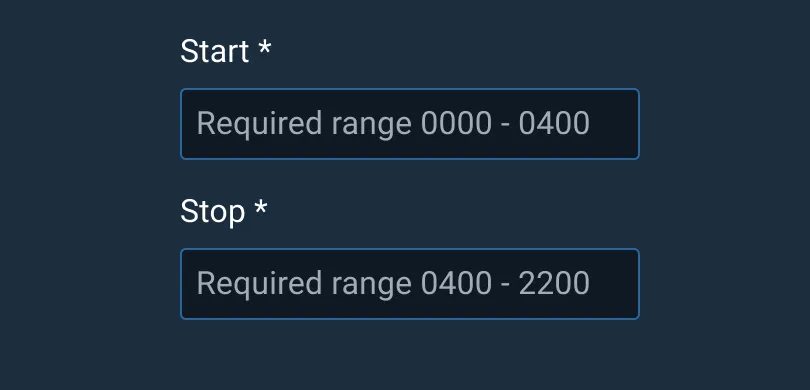

Don’t: Use placeholder text for information that should be visible when the form element is in focus.
Don’t: Use placeholder text for information that should be visible when the form element is in focus.
Do: Indent Help Text under a Radio Button or Checkbox to align with the list item’s text instead of its icon.
Do: Indent Help Text under a Radio Button or Checkbox to align with the list item’s text instead of its icon.

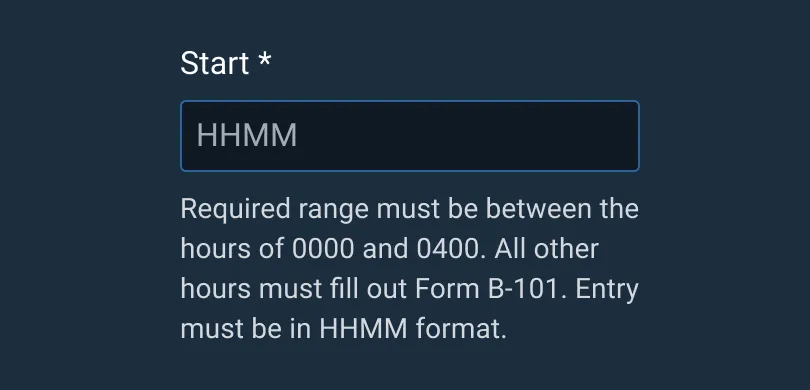

Don’t: Go over one line of Help Text. Use a Pop Over instead for text that is too long.
Don’t: Go over one line of Help Text. Use a Pop Over instead for text that is too long.

Validation

Validation ensures that data is properly entered into a form or form element. This includes both validation of input within required form elements and invalid data such as going over a character limit. Form validation should provide information about what and where the error is as well as how to make the necessary corrections, if possible. Validation can take place inline after a specific form element loses focus or after submission of a full form. Both can take place in the same form.

Input Fields, Checkboxes, and Select Menus can be configured to require user input and to enforce specific data formats. Once configured, these elements can provide validation as users move through a group of controls, such as a form, within a Dialog or Pane. Validation is then employed a second time when a form submission Button is pressed.

Individual elements outside of a Dialog or Pane can also be configured for validation.

Rules of Thumb

Poorly written error messages confuse and frustrate the user and force them to fix the input problem through trial and error.

A well written validation error message greatly reduces the user’s error recovery time and boosts user’s confidence in the quality of the application. The error message should inform the user as succinctly as possible:

  • What the input problem is.
  • Why the input was deemed invalid.
  • How to fix the input error.

Writing in the Astro Voice

The voice of Astro applications is direct, confident, and reflects the critical nature of Astro events and processes. It’s never chatty or informal nor does it personify technology.

Tips for writing validation error messages in the voice of Astro:

Appearance and Behavior

For inline validation on specific form elements, Validation Text follows the same guidelines as Help Text in terms of general appearance and location. Validation Text is the same font size, is placed 8 px below the form element or group, uses sentence case capitalization, and lines up under the left-edge of the form element or form element group in the case of Checkboxes or Radio Buttons. If Help Text is present at the same time as an error state, the Validation Text replaces the existing Help Text under that form element.

The validation-specific appearance elements are a red border around the relevant element or grouping, use of red, bold text instead of secondary text color, and starting the text with a red warning icon. This provides the user with multiple cues about the error state to aid in accessibility. The bold text enables accessible color contrast levels between the text and background colors.

For post-submission errors, a Notification Banner or in-page message can be used to show more general information such as an error count or a general error message for the form or page.

Examples

Examples of configuration options for validation of Input Fields:

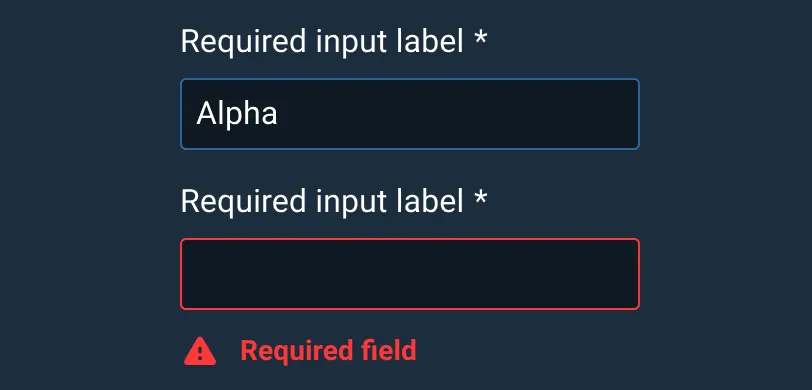

Required Input - User must enter some text. If no text is entered, a warning icon and instructional text is shown.
Required Input - User must enter some text. If no text is entered, a warning icon and instructional text is shown.

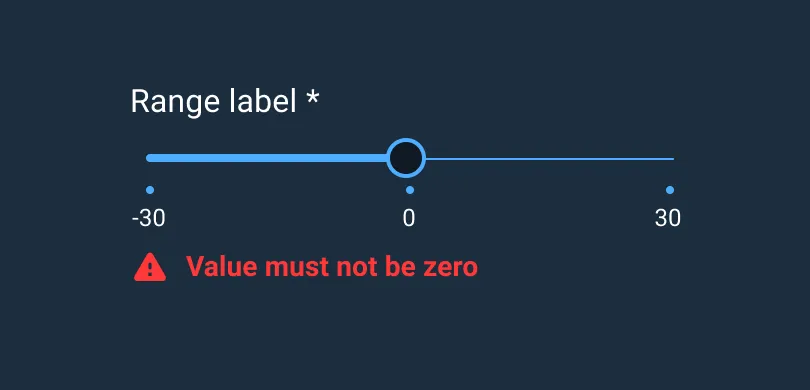

Range - Input must be a number within a specific range. Non-numeric characters and out-of-range values are indicated with a warning icon and instructional text.
Range - Input must be a number within a specific range. Non-numeric characters and out-of-range values are indicated with a warning icon and instructional text.

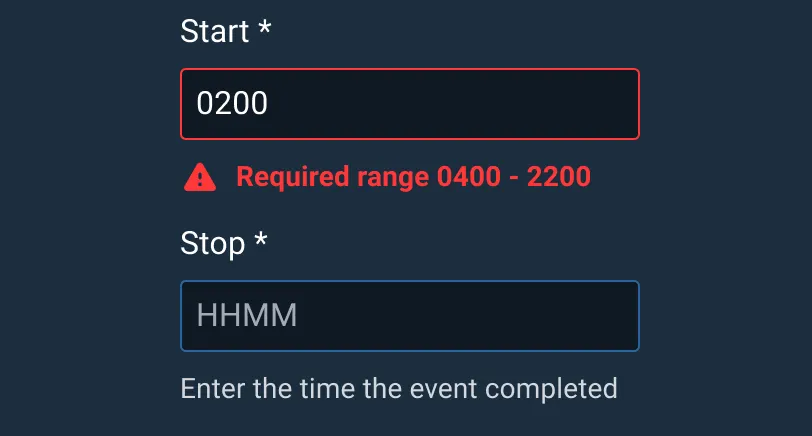

Time - Input must be a valid time. Text that cannot be recognized as a valid time is indicated with a warning icon and instructional text.
Time - Input must be a valid time. Text that cannot be recognized as a valid time is indicated with a warning icon and instructional text.
Checkboxes can be configured to require input, where at least one item in a group must be selected.
Checkboxes can be configured to require input, where at least one item in a group must be selected.

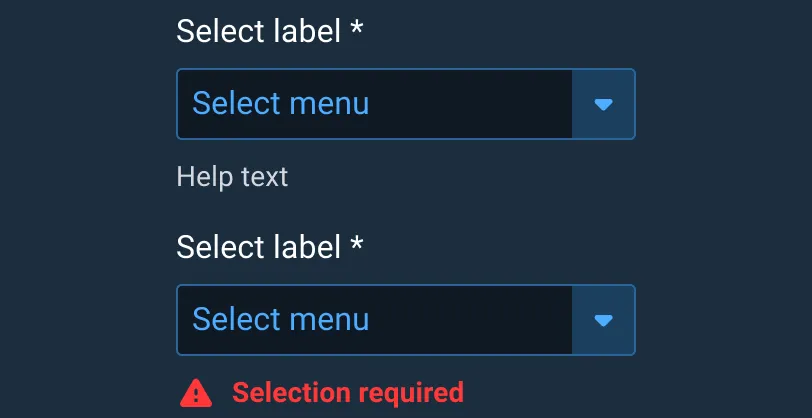

Select Menus can be configured to require input, where at least one item in the menu must be selected.
Select Menus can be configured to require input, where at least one item in the menu must be selected.
